SIENNA ULTIMATE EEG

SIENNA Ultimate - The hybrid LTM and EEG Amplifier from EMS

EMS Biomedical announces the first electrophysiological amplifier on the market with an incredible 32 bit resolution and a sampling frequency of 1 MHz SAR technology. The signal resolution for this technology is 50pV/bit.

The "Ultimate" in Performance

Unrivalled signal resolution of 50 pV/bit.

Integrated WiFi+LAN functionality as a standard feature.

  • Real-time acquisition and monitoring
  • Bidirectional communication over the "Ultimate"
  • Real-time spike and seizure detection
  • Upgradeable to 192 channels (three 64 channel modules)

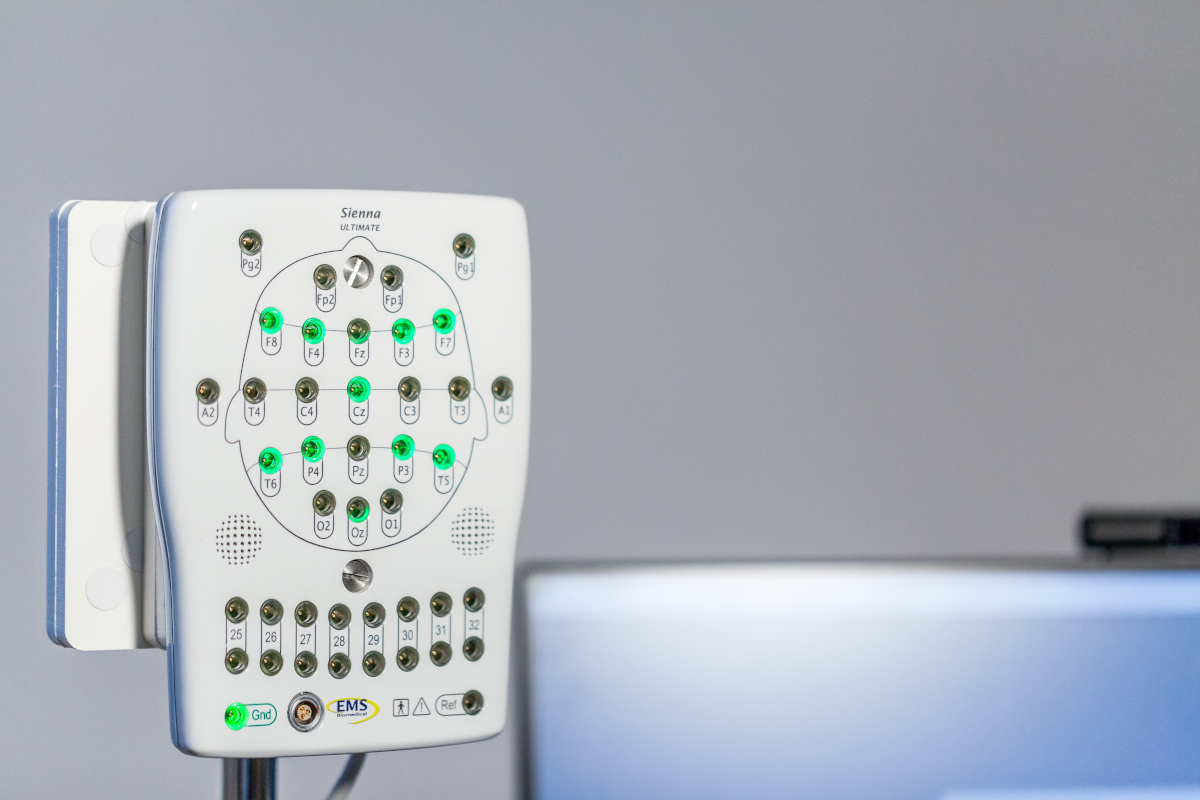

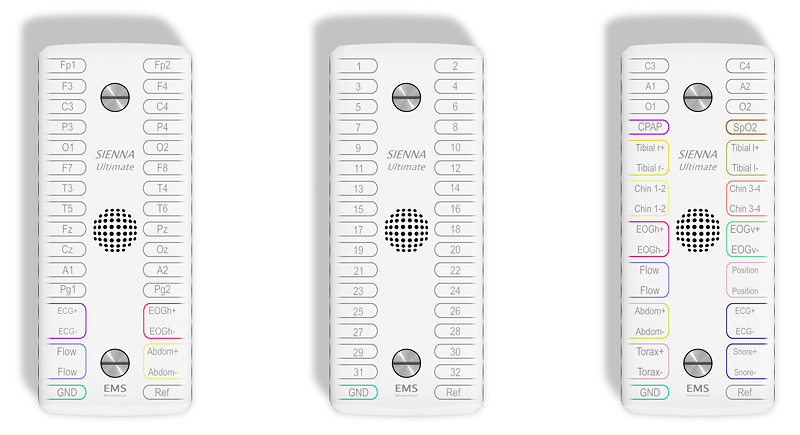

The SIENNA Ultimate  EEG Amplifier can be configured with headboxes for LTM, Sleep, 10/20 and numerical easily, simply by replacing the headboxes.

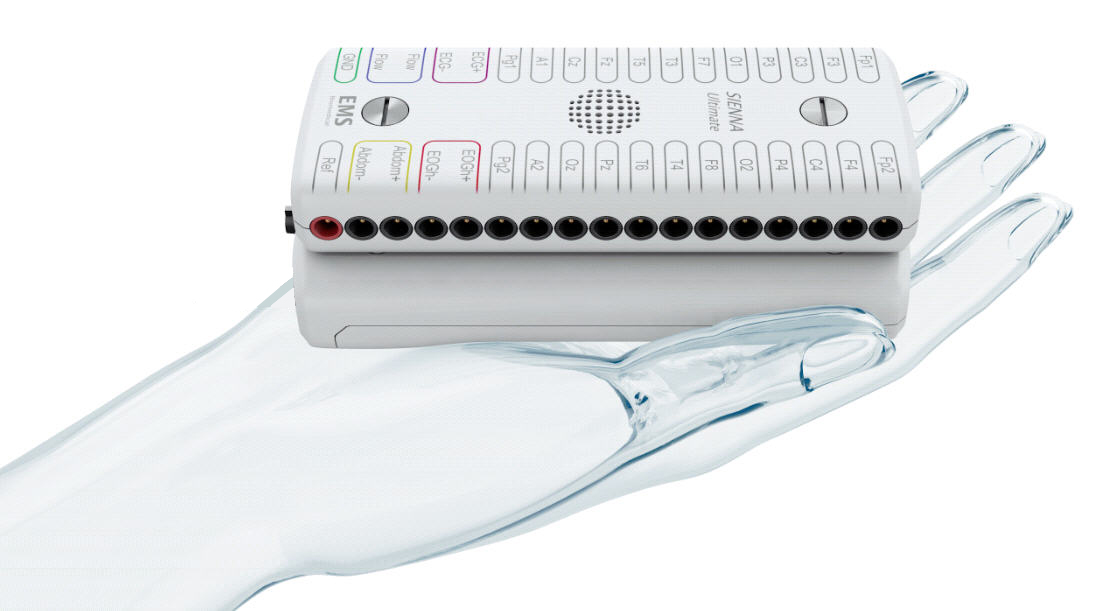

The 190 gram lightweight amplifier has a patient alarm button as well as a body position sensor.

The SIENNA Ultimate  amplifier provides storage and subsequent transmission of data, that is not transferred live, when the amplifier is out of range situations.

Sienna Ultimate software applications:

• EEG record and review
• Compressed spectral array
• Compressed density array
• Brain Mapping
• Digital Full HD Video
• Cerebral function monitoring
• ICU/NICU Neuro monitoring
• Real-time spike detection
• Real-time seizure detection
• Source localization
• Sound playback
• Polysomnography (manual)
• Sleep (Auto PSG) Software Package
• PSG Trend Analysis
• ERP
• BESA Compatibility
