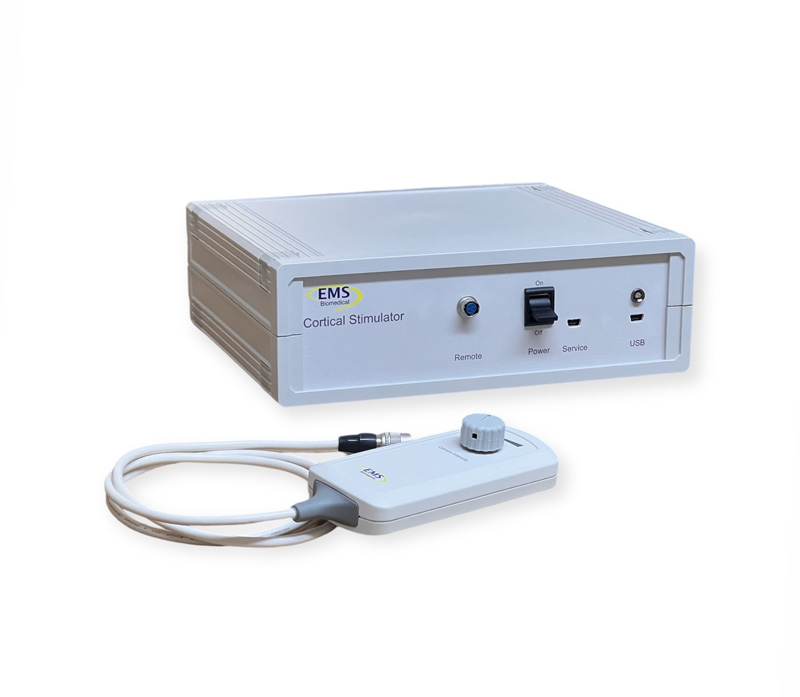

EMS NEUROSTIMULATOR

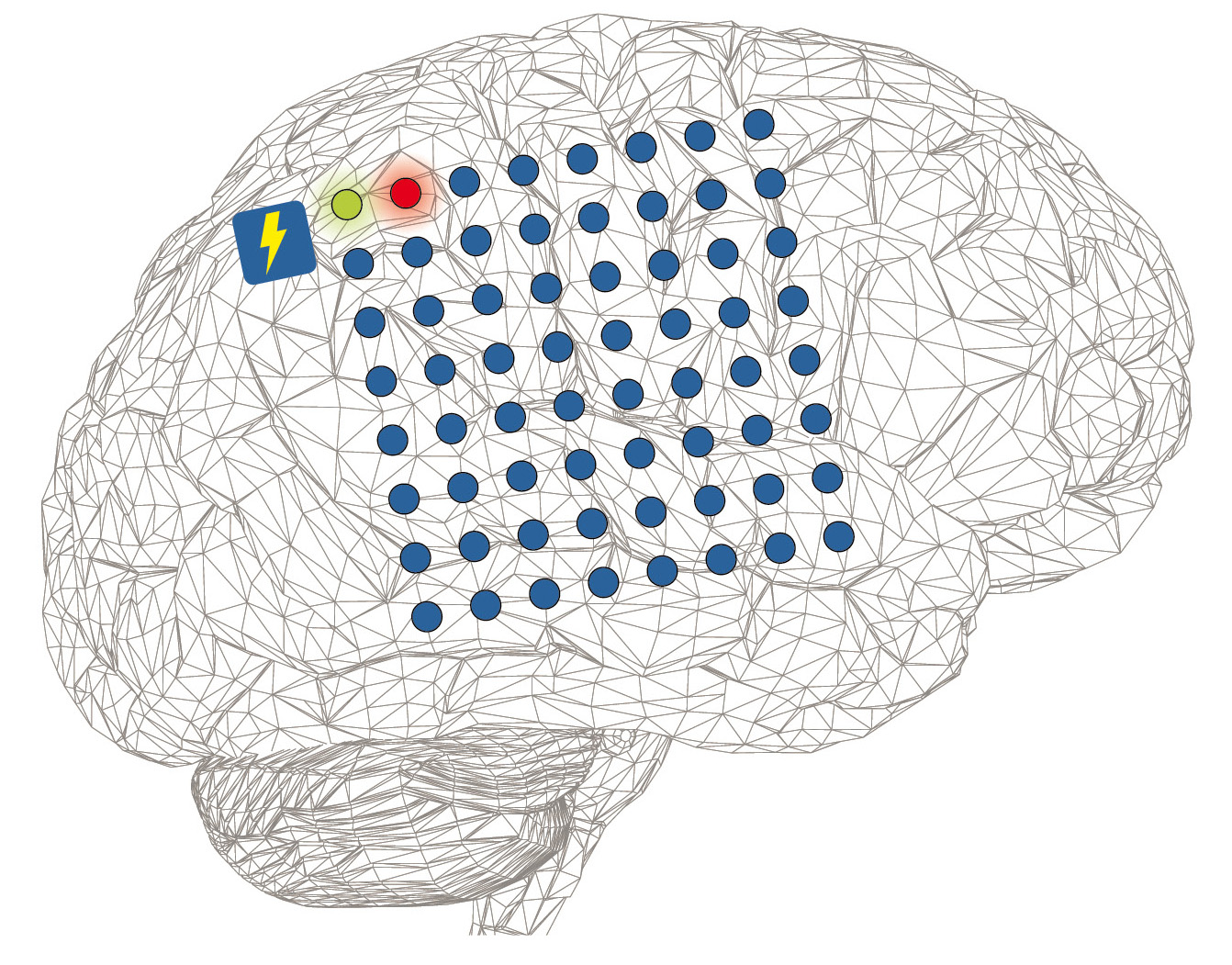

EMS Neurostimulator is a stand alone, innovative, multi channel unit for cortical stimulation.

It is used for electrical cortical stimulation, direct nerve stimulation and muscle stimulation.

The EMS Neurostimulator is an all in one system with built in constant current stimulator and up to 192 channel switching matrix.

Predefined stimulus protocols allow easy and quick use.

The stimulation is rotary and software controlled and the stimulus parameters are user configurable.

The Windows based stimulator software displays delivered current, voltage and the calculated electrode resistance.

EMS Neurostimulator is USB powered, delivers positive, negative and biphasic pulses in single, continuous and train pulse modes. The Stimulation intensity is adjustable in three ranges from 0-20 mA and the frequency ranges from 0.1 Hz to 1000 Hz, selectable in 0.1 Hz steps.

Features:

  • Stand alone system with EMS Neurostimulator software
  • Up to 192 channel switching unit in one system
  • Windows based application software
  • User configurable stimulus parameters
  • Rotary and software controlled
  • USB interface
  • Predefined stimulus protocols
  • Delivers positive, negative and biphasic pulse
  • Single, continuous and train pulse mode
  • Hardware and software Stop button
  • Save and load function for stimulation protocols
  • Displays delivered current and voltage
  • Displays calculated electrode resistance
